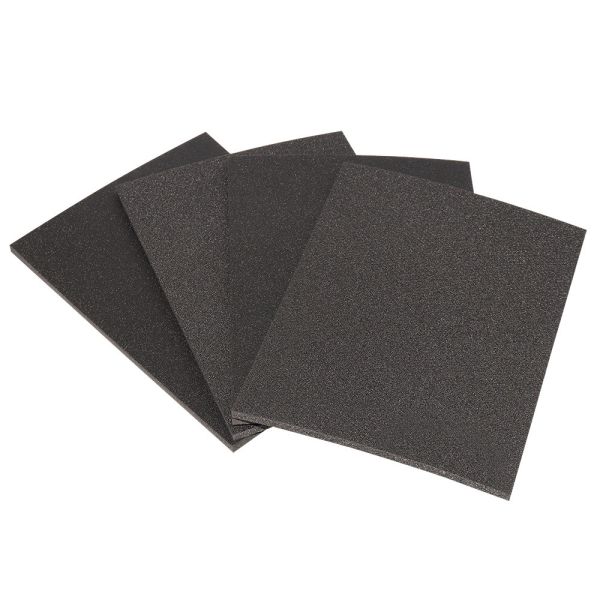

Black Non Static ESD Packing Foam Roll Conductive EVA Sheet For PCB
Packing
Anti-static EPE foam is expandable Color polyethylene foam, is a
kind of non-cross-linked closed cell foam. It has anti-static
properties by adding anti-static liquid, and the regular color is
pink and red. The regular size is 80*610*2800mm, the surface
antistatic value is 10^8-10^11.
ESD EPE Foam Features:
Main material: EPE foam
Size:customized
Surface resistance:10^8-11
Color: Pink / Red/ Blue
Cell structure: closed cell.
Anti static time: short time around 6 month.
ESD EPE Foam Advantages:
Softer than PE and EVA foam, Eco friendly.
Specification:
Types of ESD foam:
Anti-Static foam types | Ordinal ESD Foam Features | Foam Shape | ESD Type | Odor |
ESD PE Foam
| Single Thickness: 0.5-7mm | Roll / Sheet / Tray | Permanently | No Odor |
Laminated :100mm |
|
|
|
Color: Black |
|
|
|
ESD EVA Foam
| Single Thickness: 0.5-70mm | Sheet / Block/ Tray | Permanently | —– |
Laminated :100mm |
|
|
|
Color: Black/Blue/Red |
|
|
|
ESD EPE Foam
| Single Thickness: 3-50mm | Sheet / Tray/ Insert | Around 6 Months | No Odor |
Laminated :100mm |
|
|
|
Color: Black,Pink, Red |
|
|
|
ESD PU foam
| Single Thickness: 3-40mm | Sheet/ Block/ Tray | Around 6 Months | ——– |
Laminated :100mm |
|
|
|
Color: Pink , Black |
|
|
|
Types of ESD Tray:
Item | Foam Tray | Blister Tray | PP Injection molded Tray | Corrugated Tray | Foam Injection Molded Tray |
Material | PU/PE/EVA/EPE | PP/PS/PET | PP | PP | PP |
Color | Black/Pink/Red | Black/Transparent | Black | Black | Black |
Conductive Value | 10^3-10^5 | 10^3-10^5 | 10^4-10^9 | 10^3-10^5 | 10^5-10^8 |
ESD Value | 10^6-10^9 | 10^6-10^9 | 10^6-10^9 |
Customize | Yes | Yes | Yes | Yes | Yes |
low cost | Medium Cost | High cost | Low cost | High cost |
FAQ:
Q1:How does the foam to be anti-static?
1)Adding antistatic agent
2)External coating anti-static liquid
The above two ways are most commonly used in the foam factory to
make the foam to be anti-static, through these two methods can
produce an effective anti-static packaging products for the
electronics field.
Q2:Why do electronics need ESD packaging?
Electrostatic discharge (ESD) refers to the flow of electricity
between two electrically charged objects. When static electricity
builds up, it can damage sensitive electronic devices.
